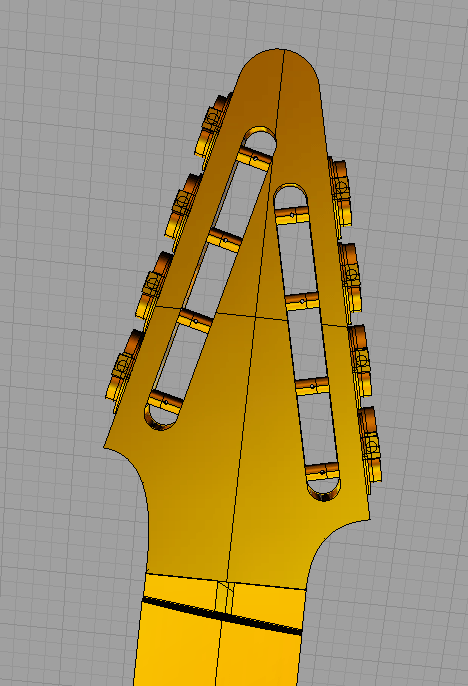

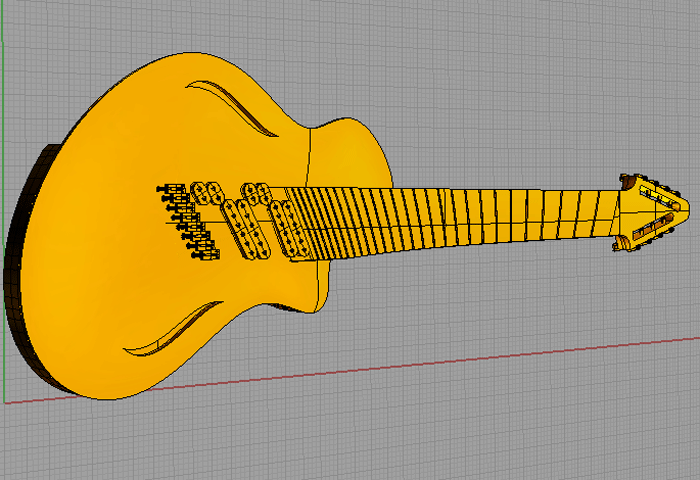

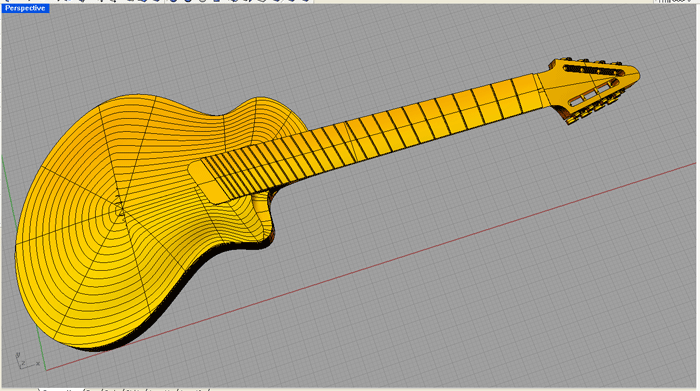

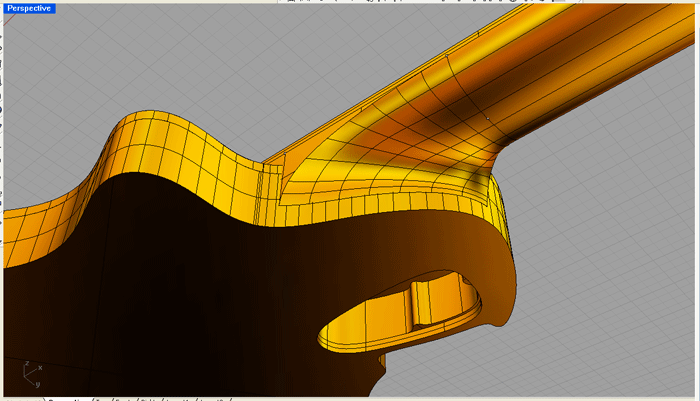

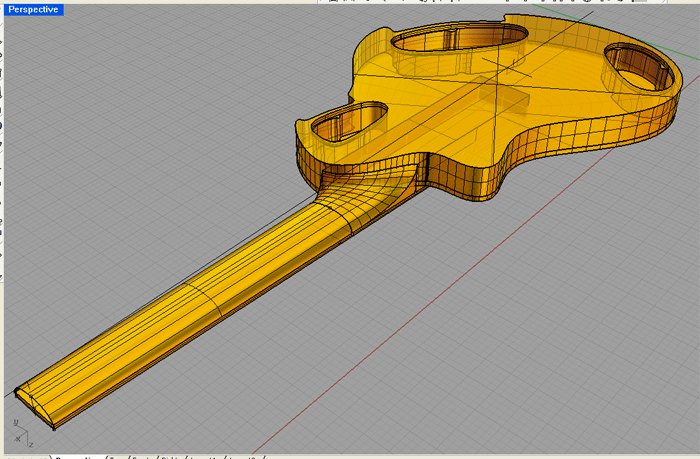

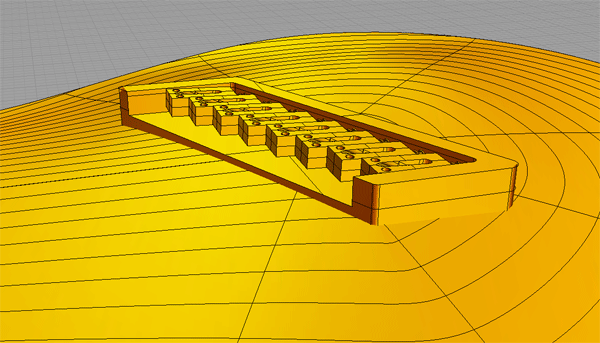

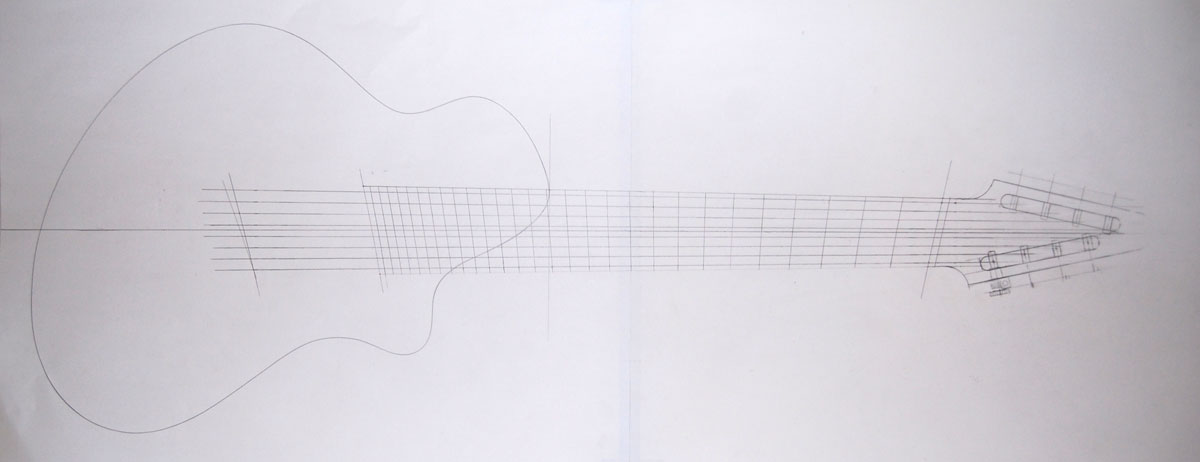

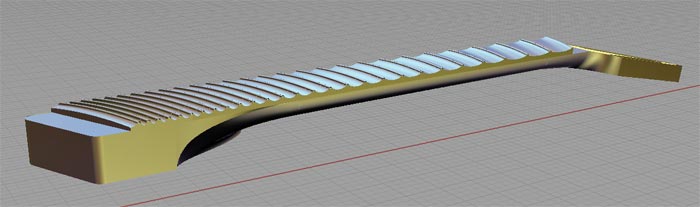

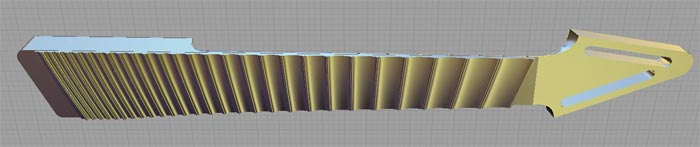

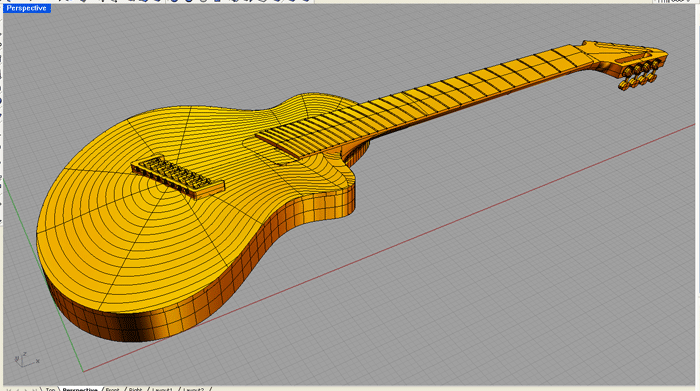

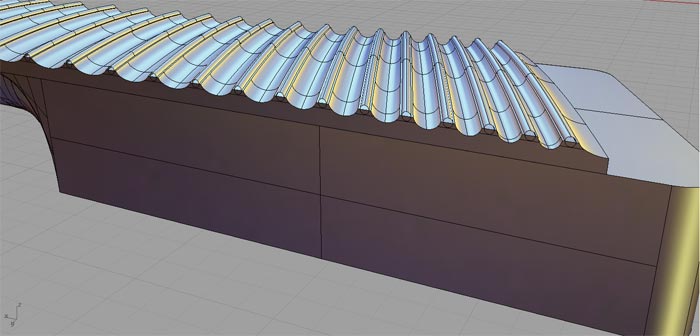

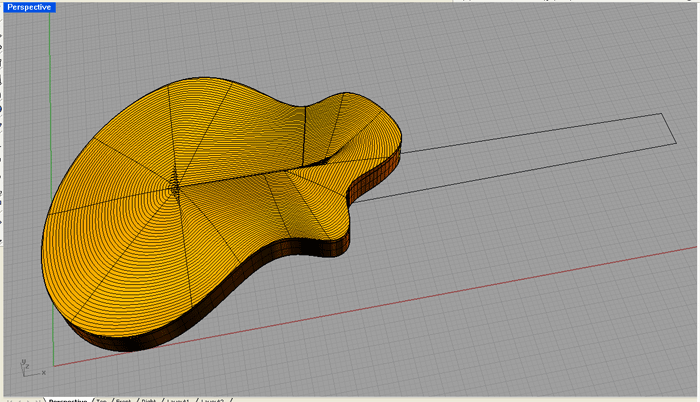

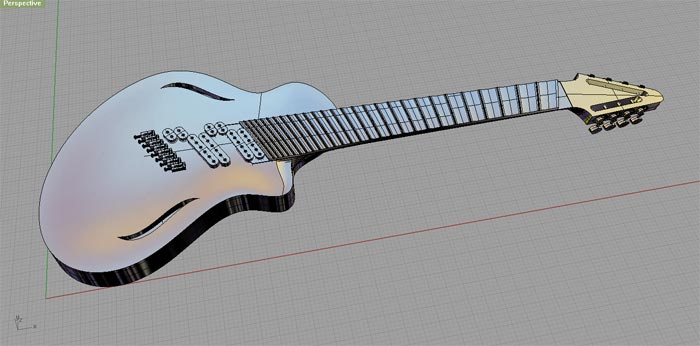

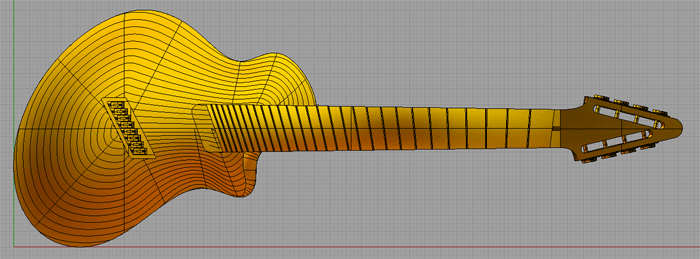

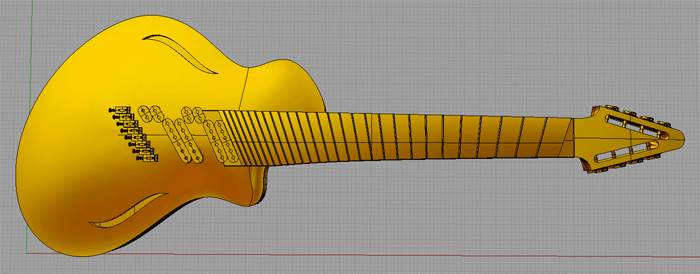

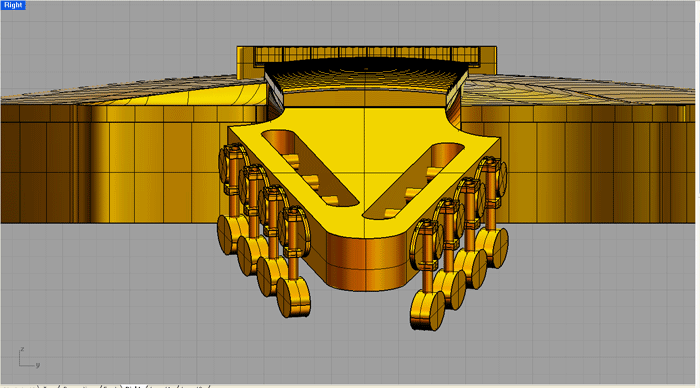

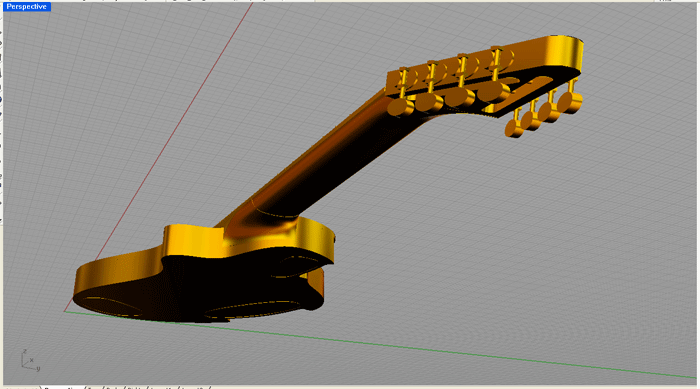

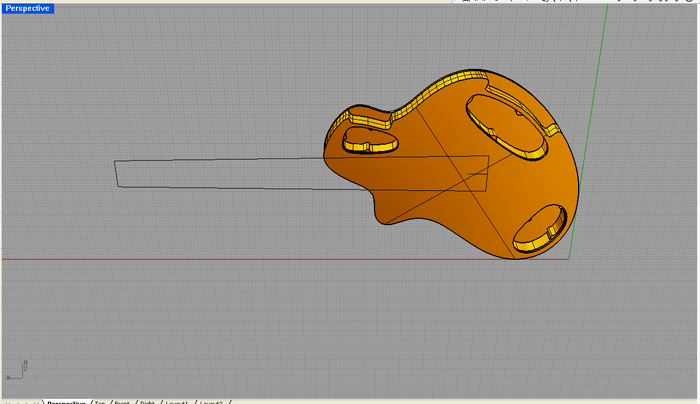

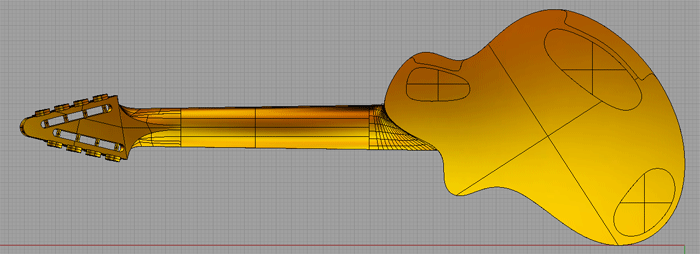

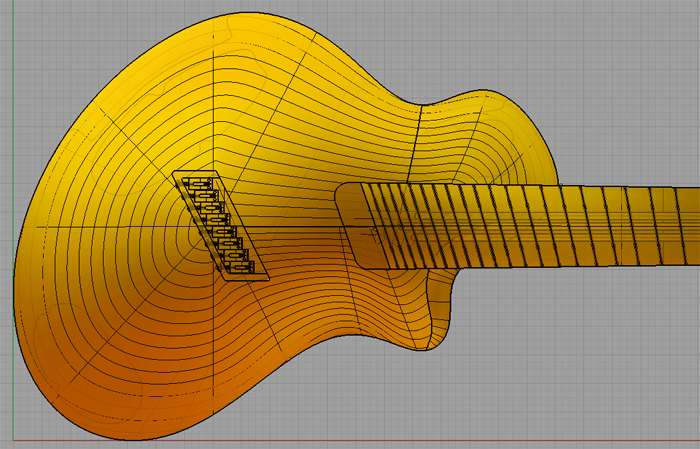

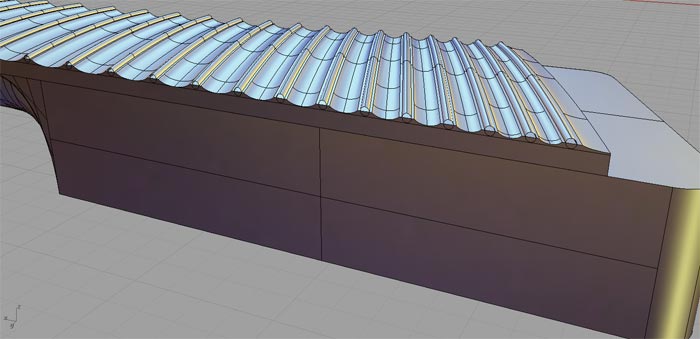

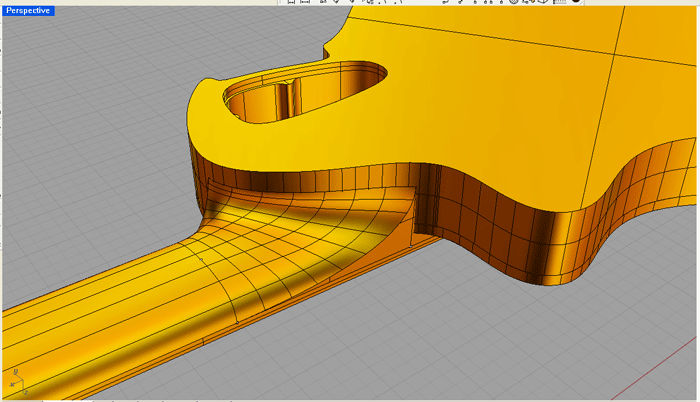

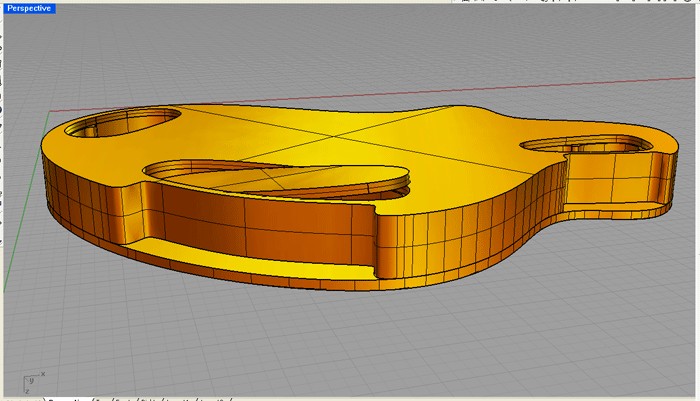

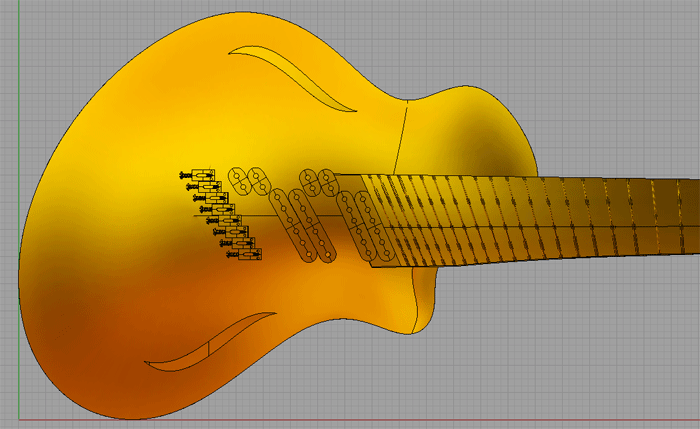

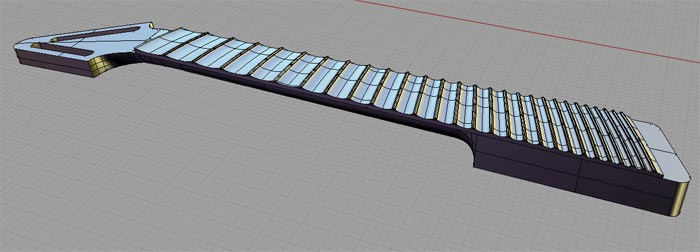

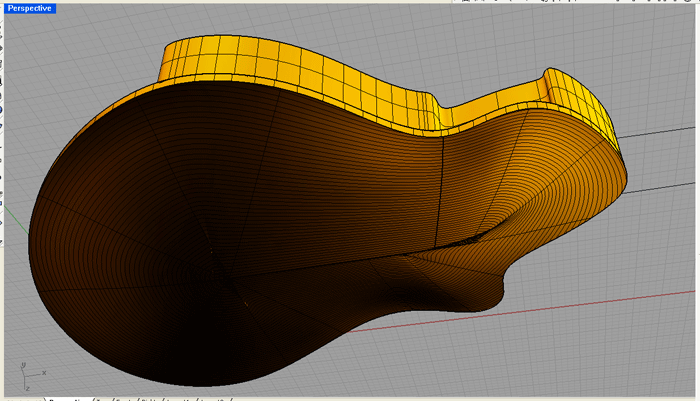

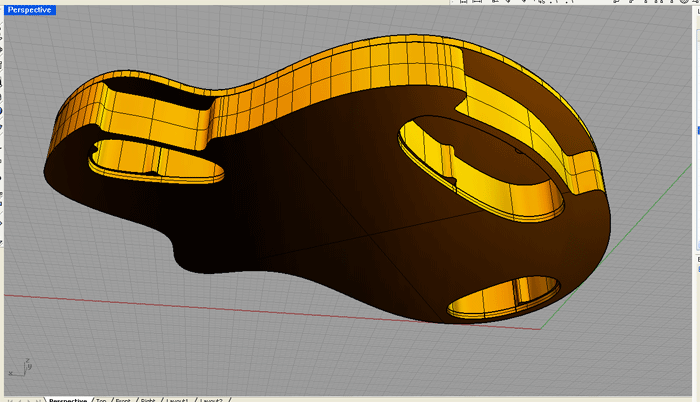

Custom Scorpion #121Concept sketch:  Top:  Back showing control cavities:  Showing control recesses:  Back angle:  Showing flip-out control cover:  Basic neck and heel design:    Headstock complete:       Bridge ideas:  Bridge:   Tapered Neck:    Scalloped neck:     Progressive depth scallops:  Full depth scallops:  |
||||||||||||||||||
|
Custom Scorpion #121Top: Curly RedwoodBody: Korina in slanted Dragonfly style Neck: Korina with Custom Headstock shape Binding: Ebony around body and headstock Custom magentically attached control covers on back 8-string neck (6-string guitar/2-string bass) Fingerboard: Ebony (scalloped) Headstock Front/Back: Ebony (Triangle shape on front) Scale Length: Fanned fret (27" - 24.5")" Fretboard radius: 16" Neck Carve: Custom Frets: 27 6-string Guitar Pickups: Custom Lollar Humbuckers Electronics: Magnetic volume, magnetic tone, 6-way Additional: GraphTech Hexaphonic/Piezo System Piezo electronics: Piezo volume (internal) Hexaphonic electronics: Hex Volume, 2 push button function switches, 3-way (mag/both/hex) 2-string Bass pickups: Custom Lollar Electronics: Magnetics volume, magnetics tone Additional: GraphTech Piezo System Piezo electronics: Piezo volume (internal) 5-way Rotary switch controls bass and 6-string pickups:
Outputs: 2 stereo jack, 1 13-pin hexaphonic Stereo Jack: 6-string magenetics on tip, piezo on sleeve Stereo Jack: 2-string magenetics on tip, piezo on sleeve 13-pin: 6-string hexaphonic Knobs located on back of body, upper bout Hardware: Nickel Bridge: Custom Ebony with Graphtech Piezo Saddles Logo: Carved into the Ebony on headstock Side dots: Silver w/Pearl Tuners: Shertler Finish: Nitrocellulose |
||||||||||||||||||
|
|
