2013 Custom Classic #162

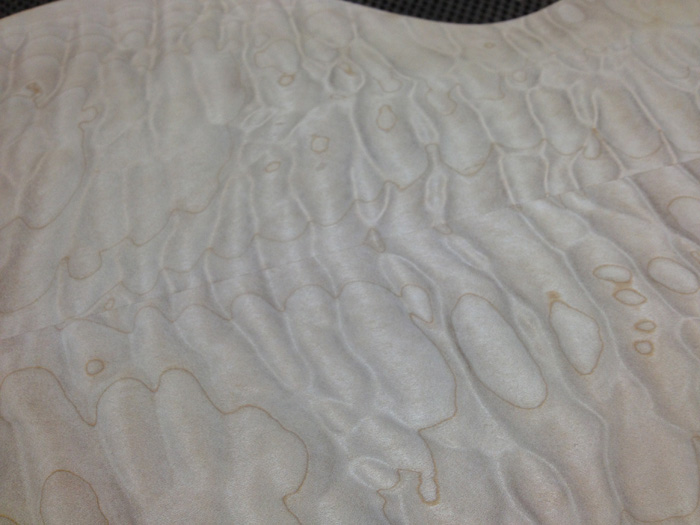

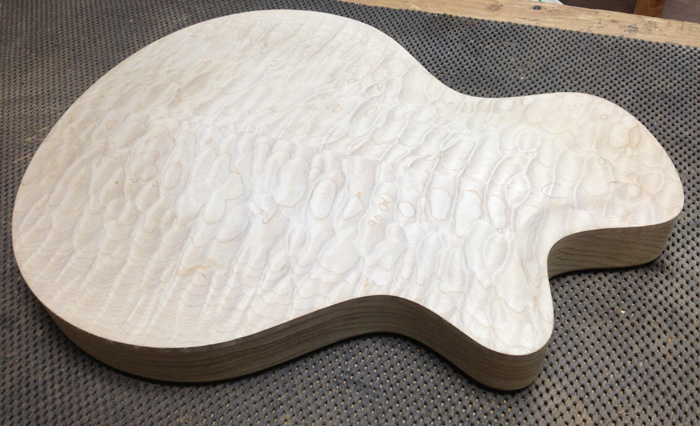

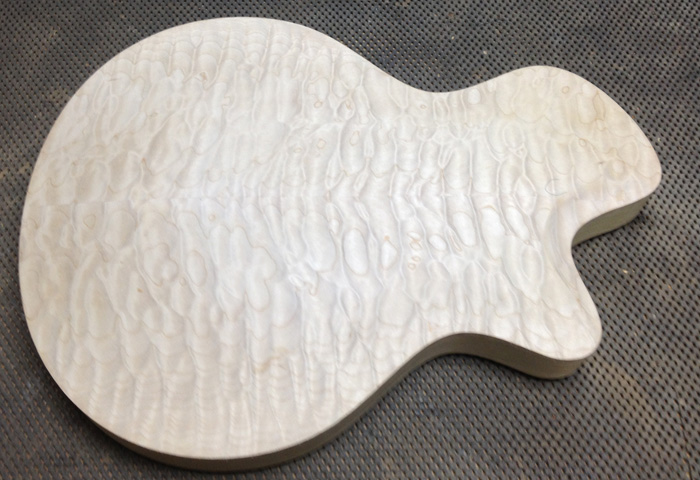

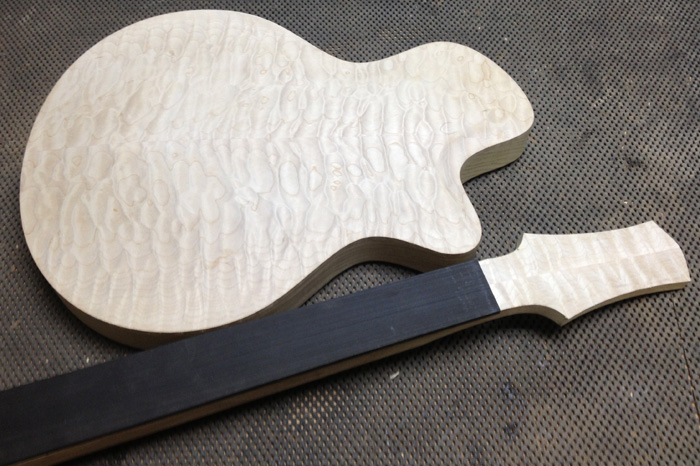

Maple top

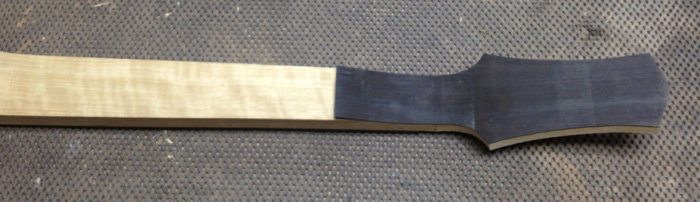

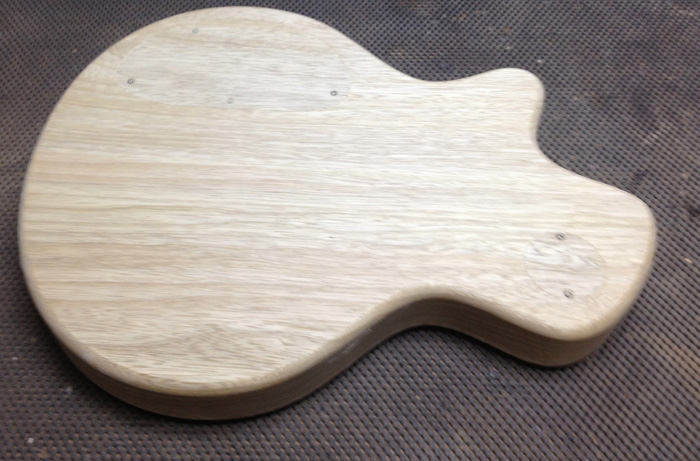

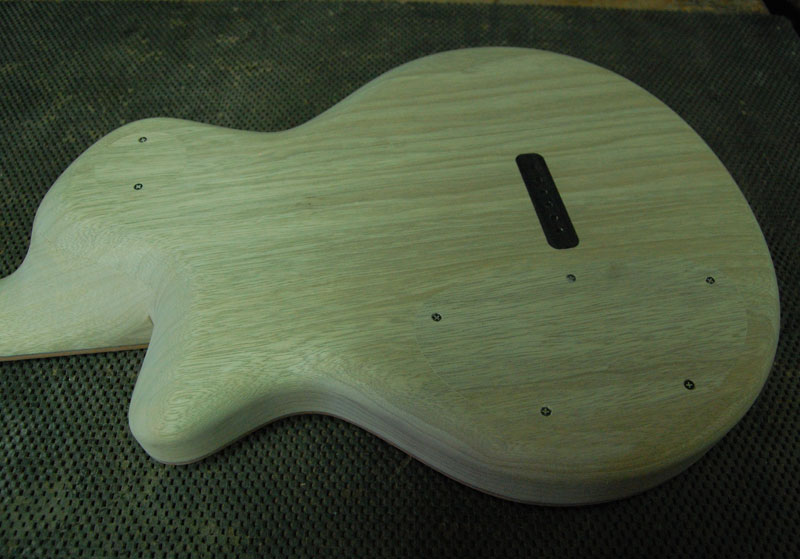

Back and back of neck

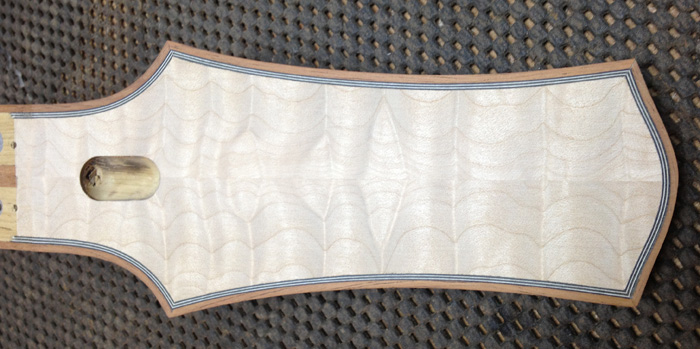

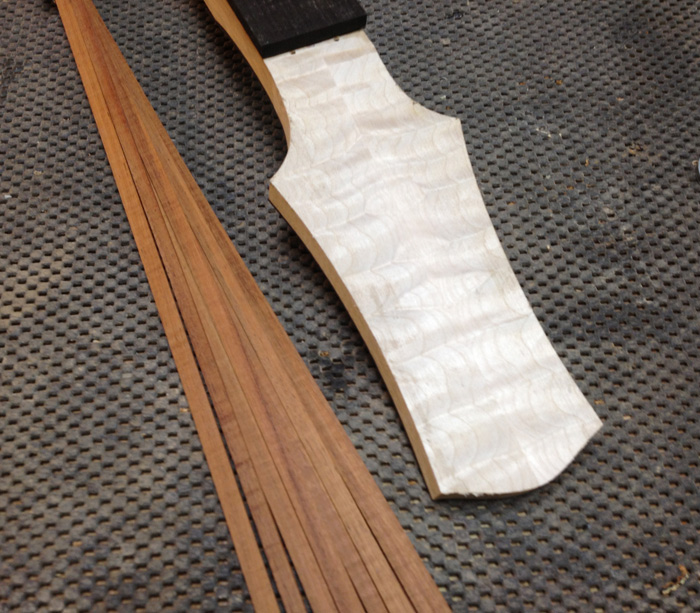

Headstock with curly koa binding

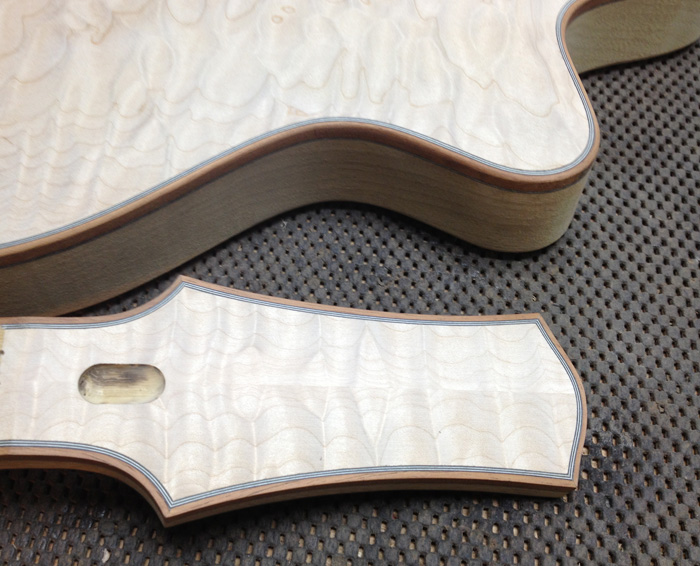

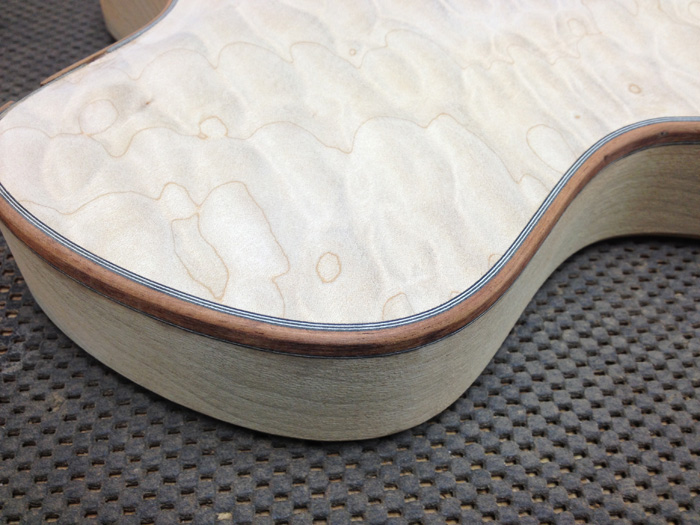

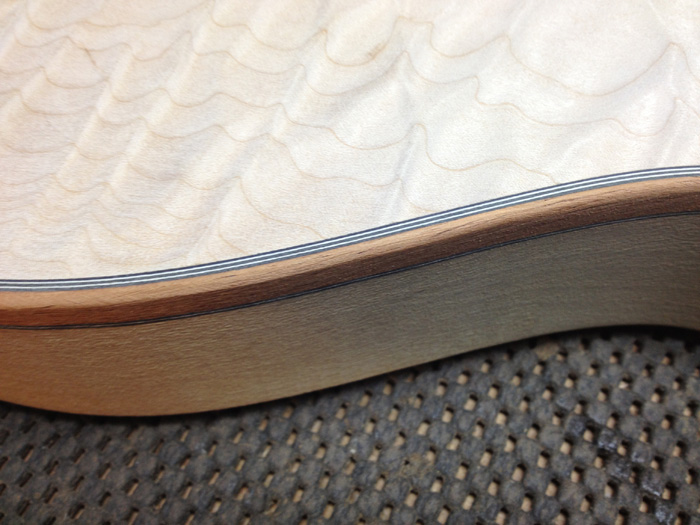

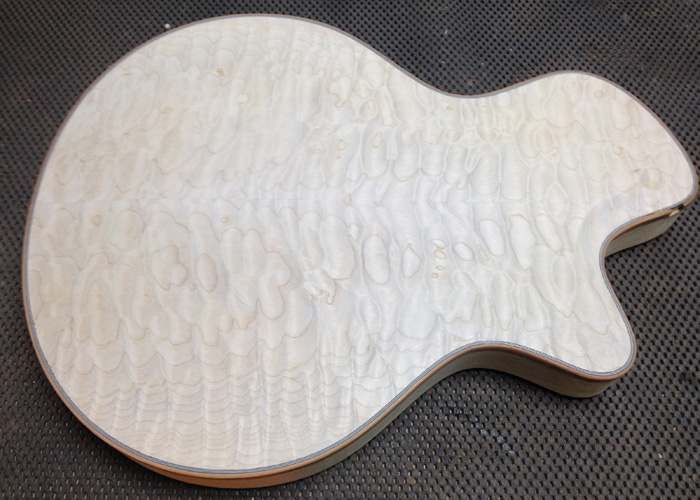

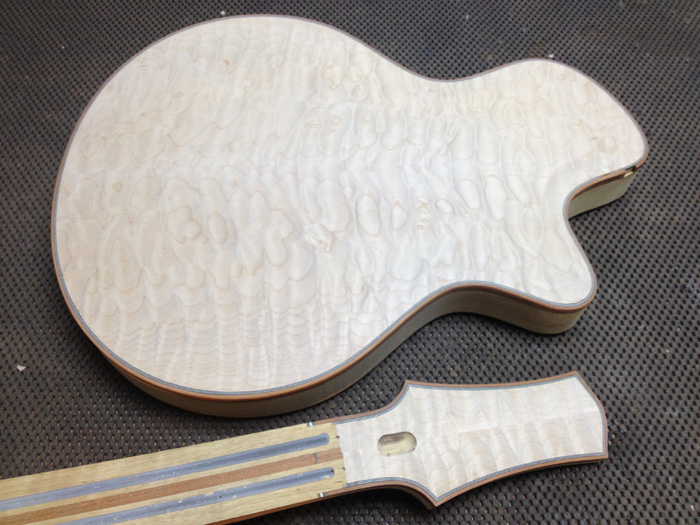

Binding and purfling:

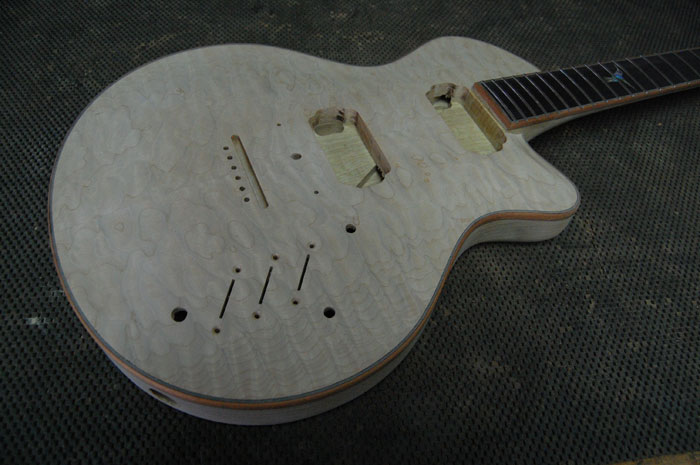

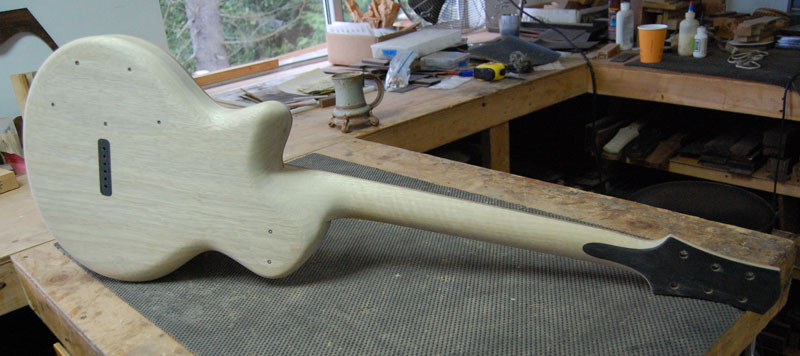

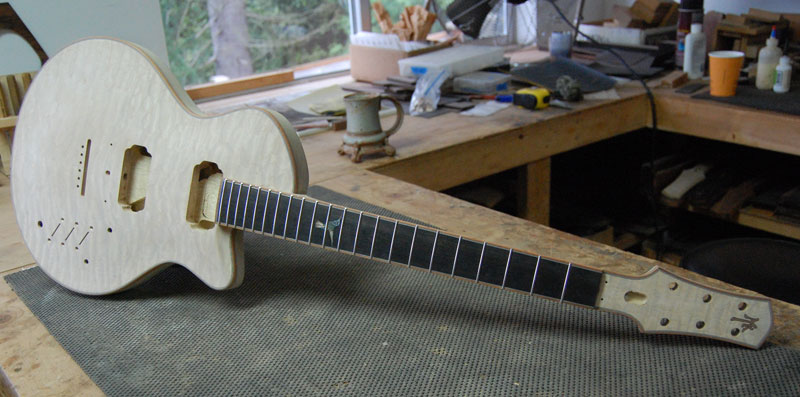

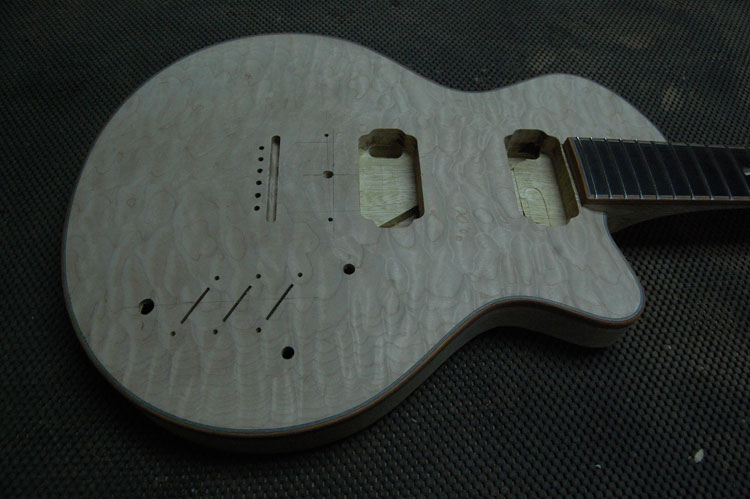

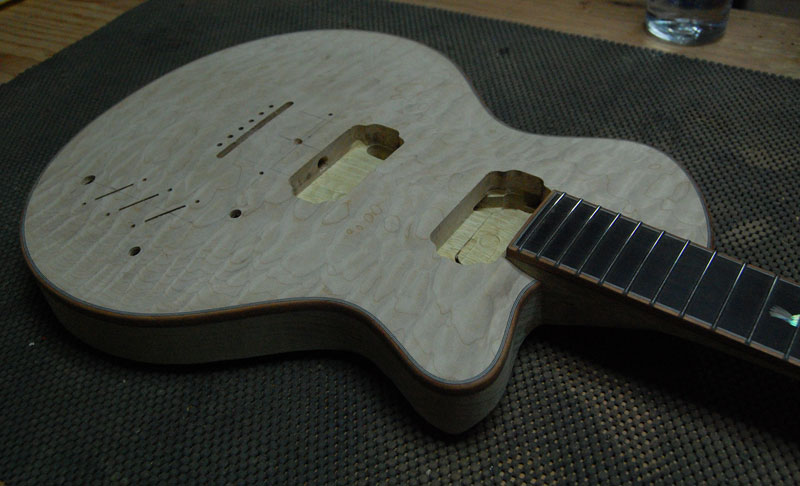

Ready for lacquer:

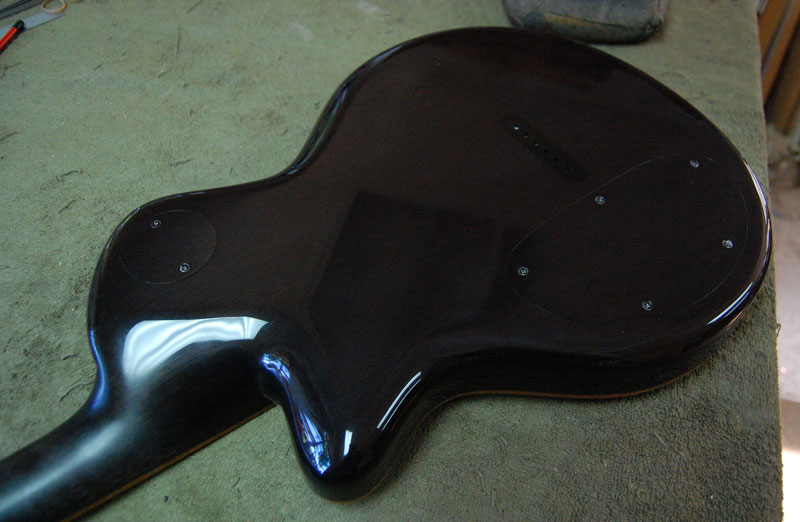

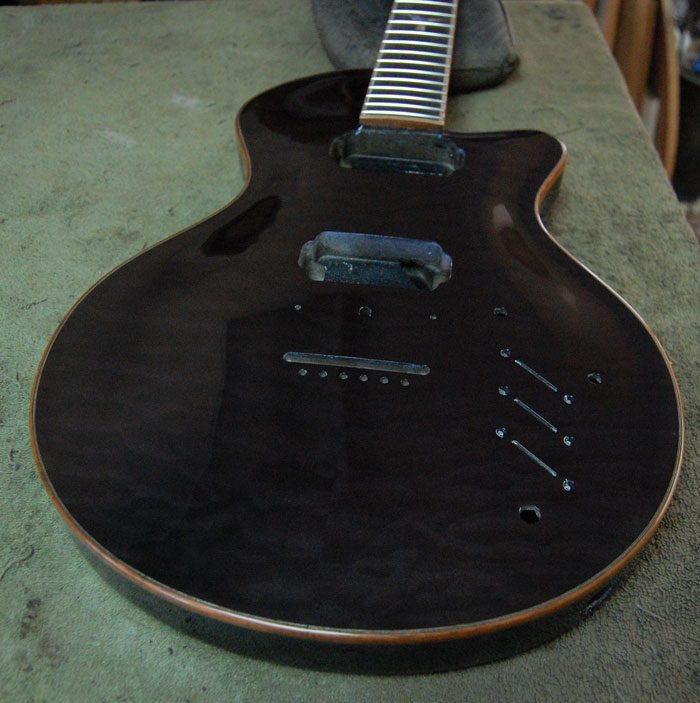

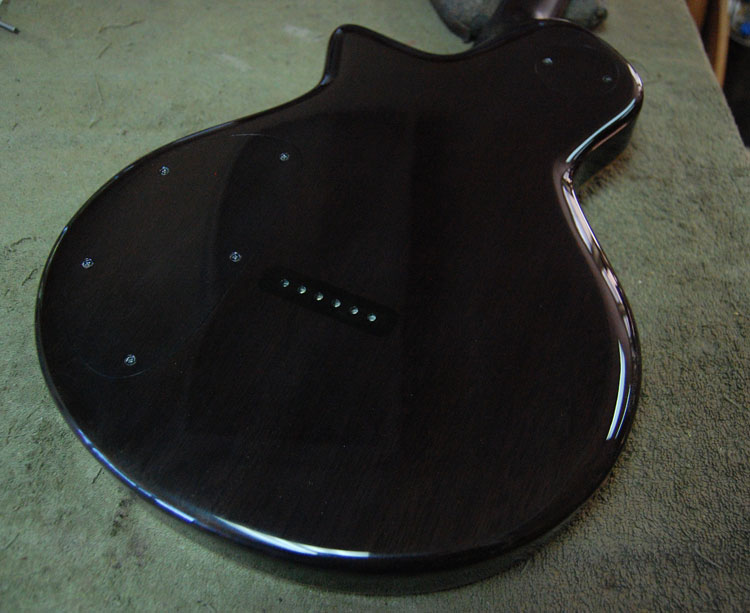

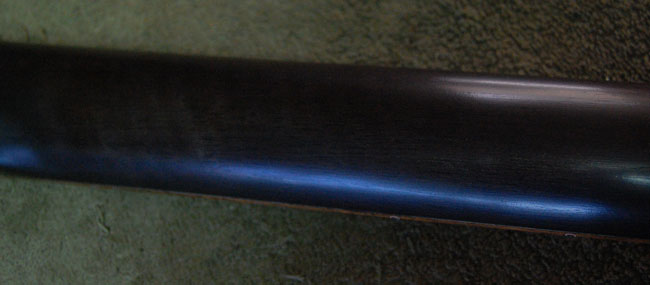

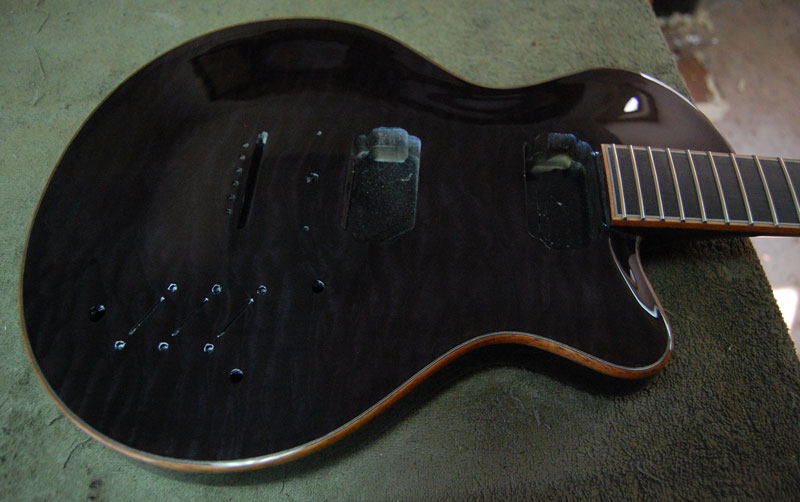

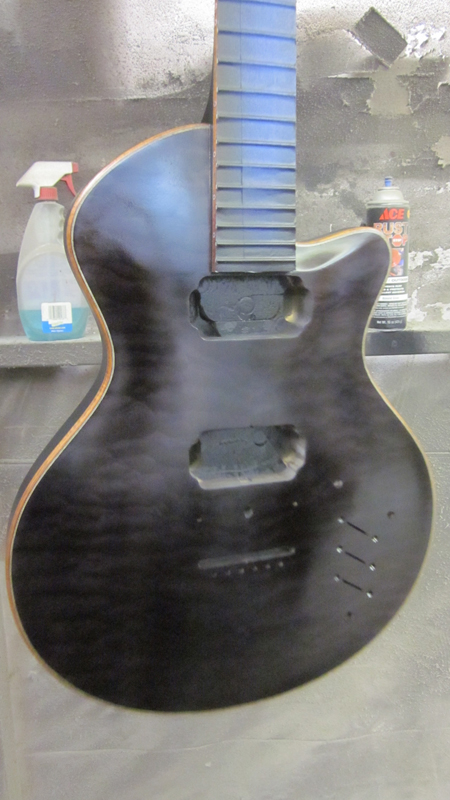

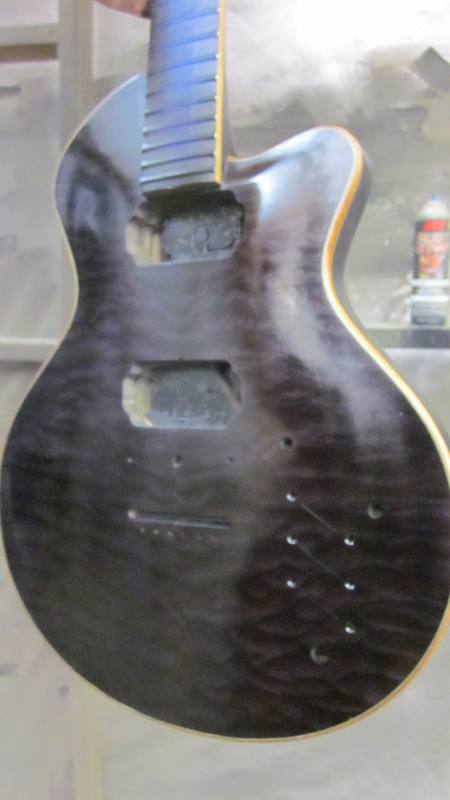

Lacquered:

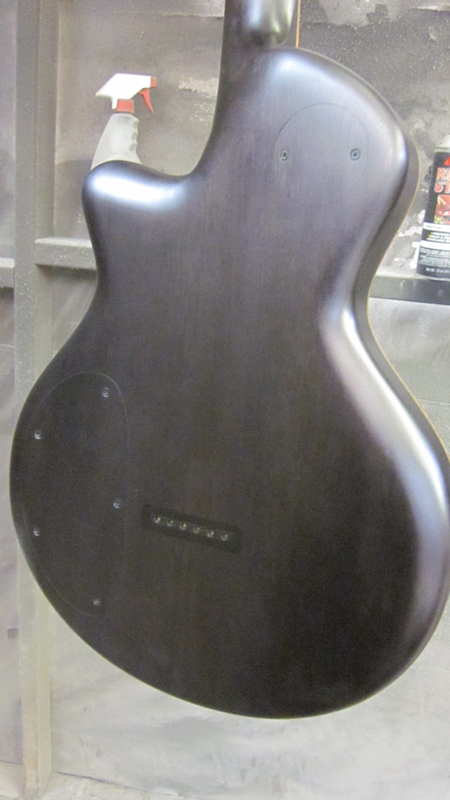

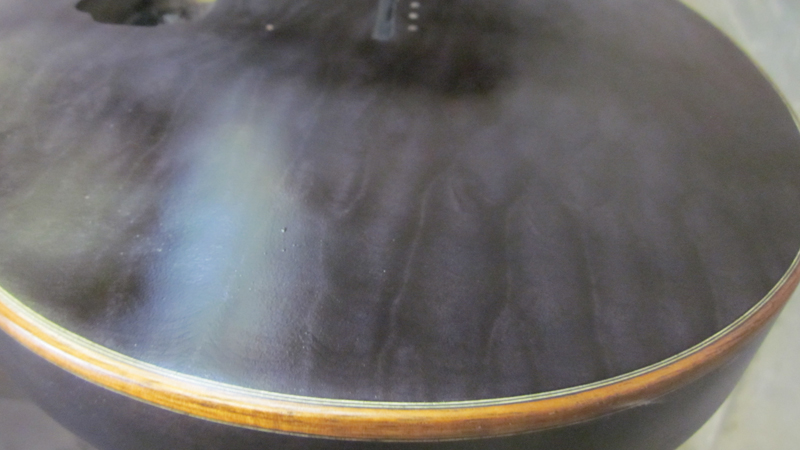

Final Finishing:

2013 Custom Classic #162

Body: Korina
Neck: Korina
Top: 5A Quilted Maple
Fingerboard: Ebony
Headstock Front/Back: Quilted Maple/Ebony
Binding: Curly Koa

Scale Length: 24.625"
Nut width: 1-23/32"
Frets: 22
Neck carve reference: slim/medium C-carve .800-.880

Pickups: Fralin Unbucker Pickups

Switching: Volume (push/pull), Tone (push/pull), 5-way:
   1. Bridge
   2. Bridge & Neck in Series Out-Of-Phase
   3. Bridge & Neck in Parallel
   4. Bridge & Neck in Series
   5. Neck

Volume (push/pull): Blower (bridge to push-pull-to-output
Tone (push/pull): Piezo on-off (down=on)

Piezo Volume
Powered by a Myka piezo-magnetics blending preamp

Bridge: TonePros tune-o-matic and Myka String-through tailpiece
Tuners: Locking Hipshot

Hardware: Gold
Logo: Koa
Side dots: Abalone surrounded by copper
Finish: Gloss nitrocellulose Lacquer with trans black finish on all but the binding. Neck ultra-thin satin trans-black lacquer
