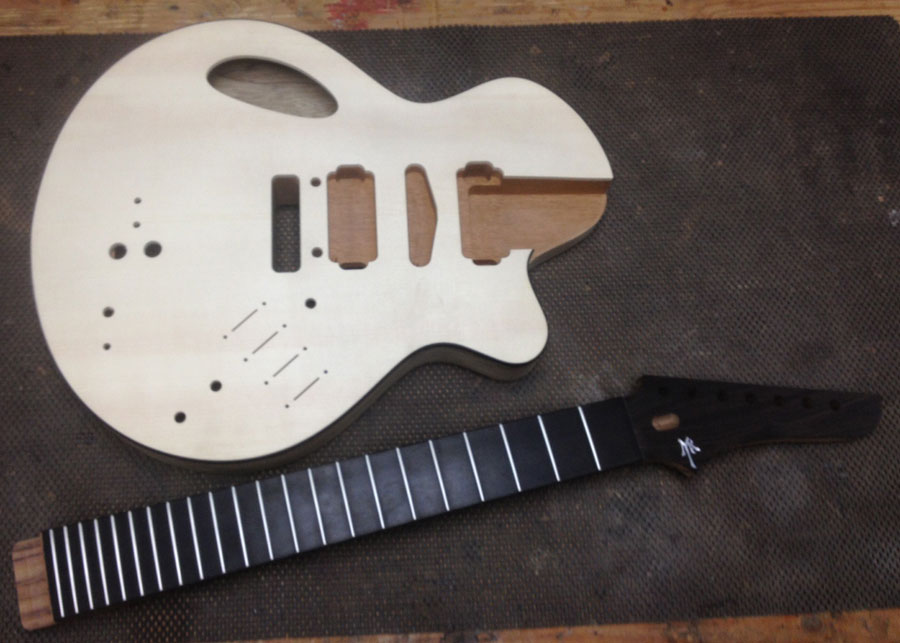

2015 Custom Semi-Hollow #175

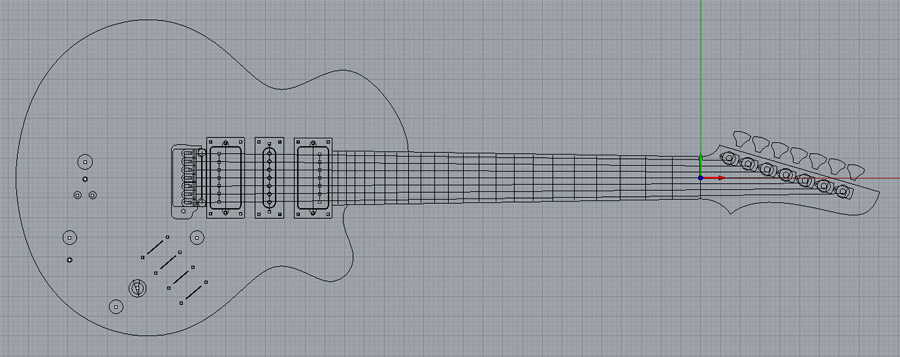

16" single cutaway semi-hollow centerblock guitar

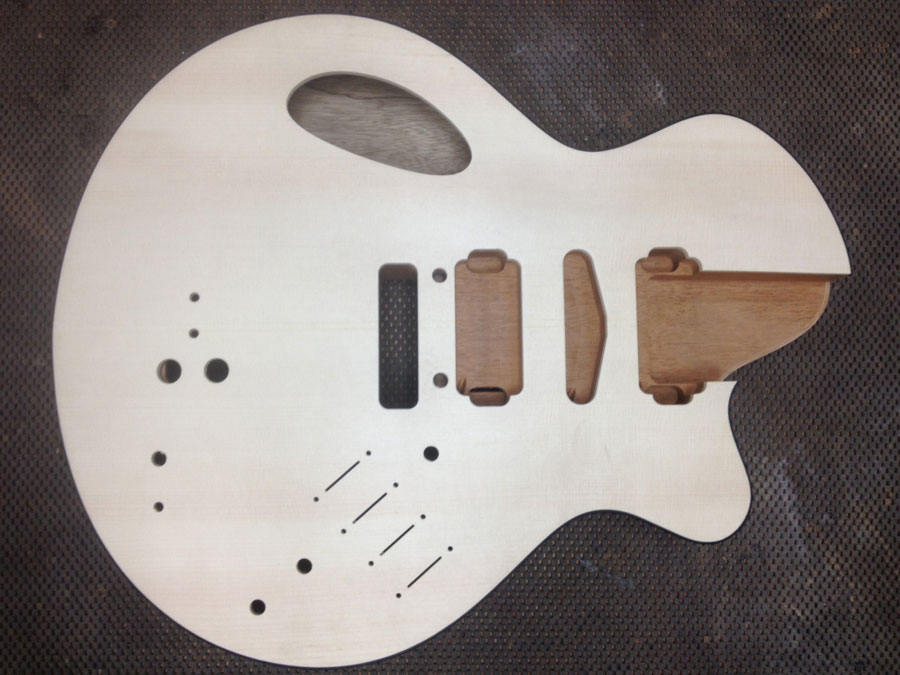

Top: Engelmann Spruce

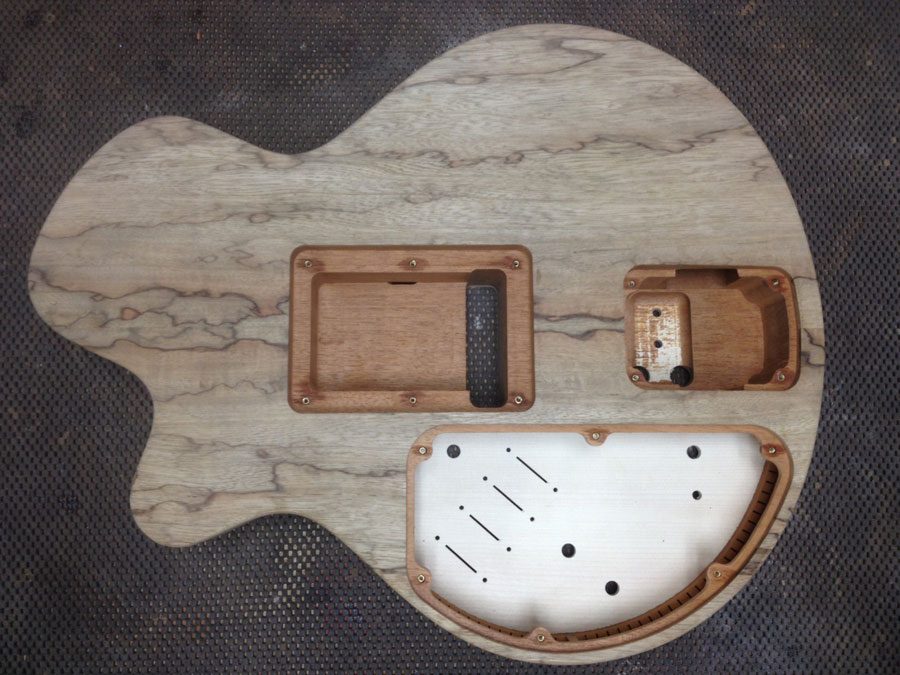

Body: Black Limba with Mahogany block
Neck: Rosewood
Fretboard: Ebony
Binding: Ebony (on body)
Soundholes: 2 small ovals on top facing player, one oval on front in traditional placement. Design to be verified.

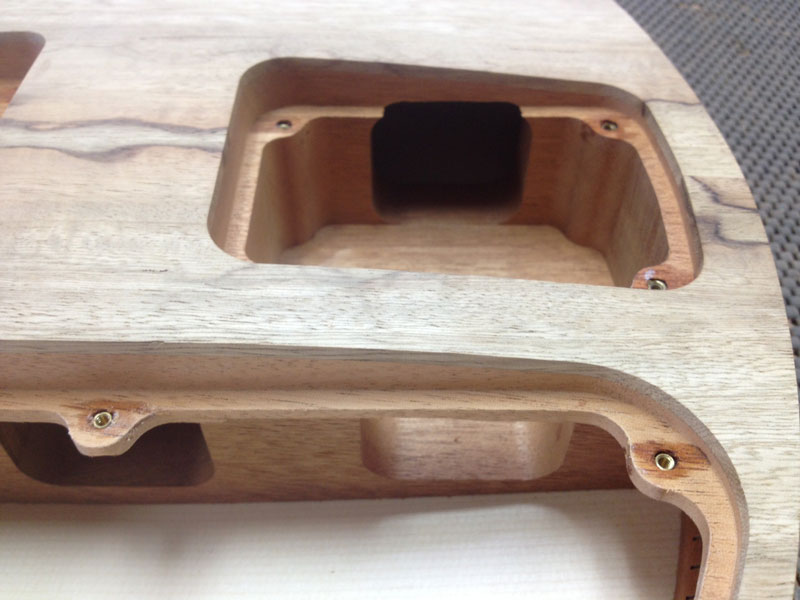

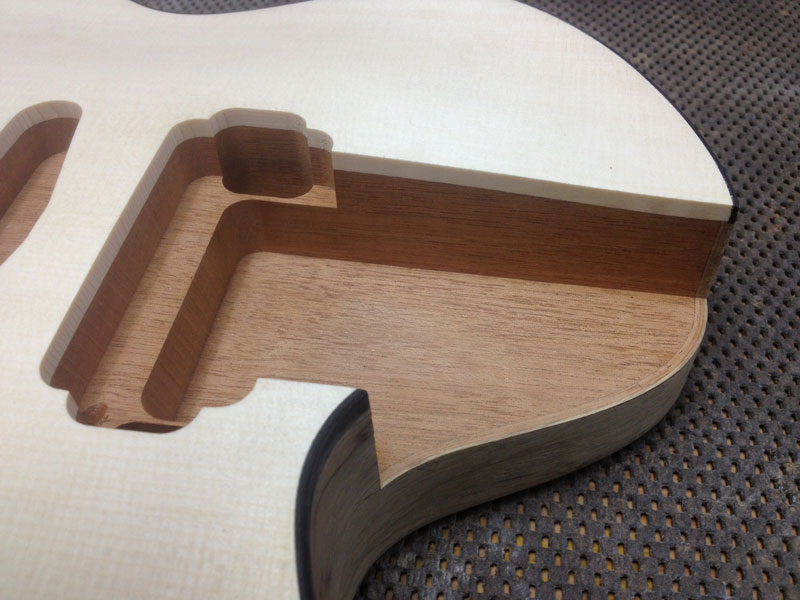

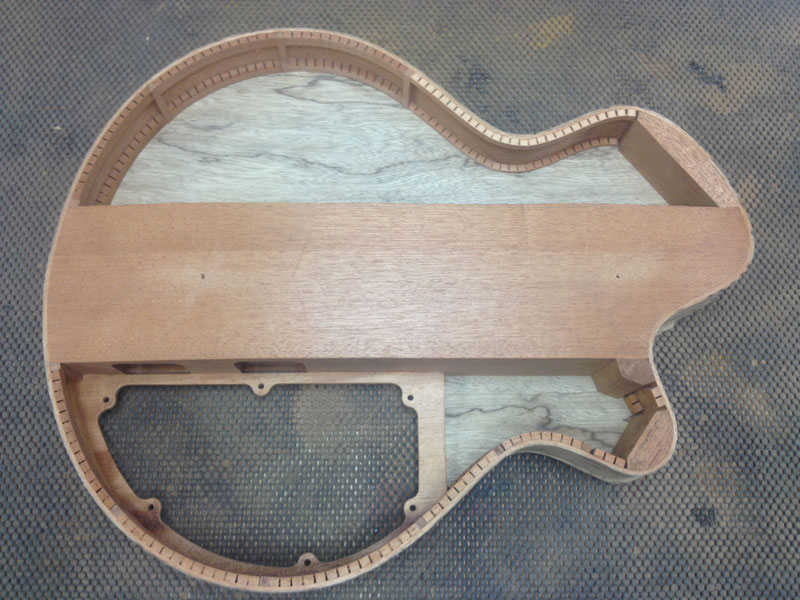

Centerblock: Mahogany with a cavity behind the bridge connecting the two open chambers of the body.

Strings: 7
Scale length: 25.5"
Frets: 22 stainless jumbo
Radius: 20"
Nut width: 2.142"
Neck carve: like your TimTone


Bridge: 7-string Hipshot tremolo
SuperVee - Maglock
Tremolo-No locking mechanism

Pickups: Bare Knuckle Pickups
Setup: Humbucker neck and bridge, Single coil middle

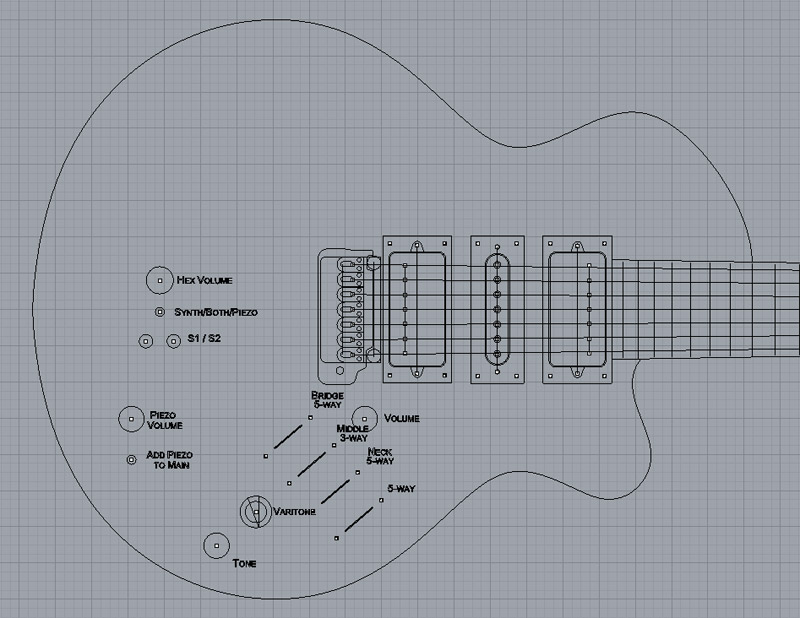

Electronics: Master Volume, Master Tone (push-pull for bypass), 5-way humbucker coil selectors, 5-way pickup selector, 5-way middle pickup selector

    5-way Pickup Selector:
        1. Neck
        2. Neck and Bridge in parallel
        3. Neck and Bridge in series
        4. Neck and Bridge out of phase
        5. Bridge

     5-way Humbucker Coil Selector:
        1. North Coil
        2. South Coil
        3. N+S in Series
        4. N+S in Parallel
        5. N+S in Series Out-Of-Phase

    5-way Middle Pickup Selector:
        1. Bypass
        2. Add Middle
        3. Middle only
        4. Add Middle out-of-phase
        5. Bypass

Additional electronics:
Dummy coils with 3-way toggle (bypass, on, on inverted) for each pickup
RMC Hexaphonic and Piezo (6 and 7 strings on one channel)
Varitone control

Inlay: pearl
Side dots: pearl

Headstock: 7 in-line
Tuners: Hipshot locking tuners awith Hipshot D-Tuners on 2 lowest strings
Dunlop StrapLoks

Hardware color: Chrome

Finish: Gloss shellac top with satin back. Oil on neck
